IB 7451 Style Single Black Shock Absorber Refer To Firestone W01-358-7451 Air Spring
The detail specifications
| The Top Cover Plate diamaster | 115mm |
| The Bottom Cover Plate diamaster | 115mm |
| The Max. Diameter | 205mm |
| Air Inlet | 1/4NPTF |
| Screw(Nut) Tooth | 2*3/8-16UNC |
| Screw Center Distance of Top Cover Plate | 44.45 mm |
| Screw Center Distance of Bottom Cover Plate | 44.45 mm |
| Screw Center Distance Between Gas Hole and Nut | 22.25 mm |
| Maximum Height | 140 mm |
| Minimum Height | 50mm |
| Stroke Height | 90mm |
| Bumper block/Buffer block | Without |
| Girdle Hoop/Girdle Ring | Without |
The drawing of the product

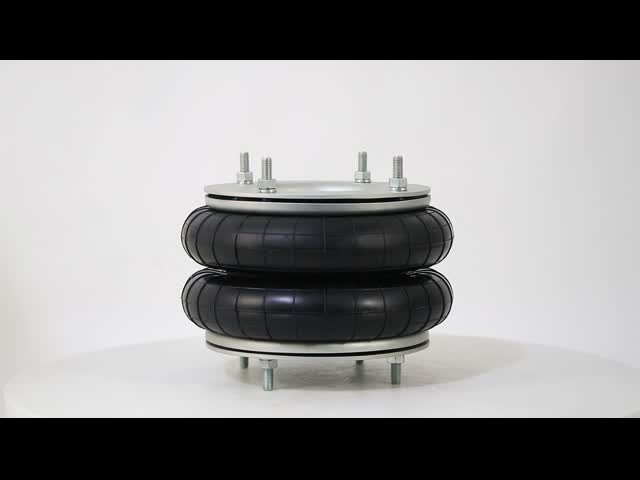

The product image:
Refer number: Firestone W01-358-7451
Firestone W013587451
Firestone wo13587451
Firestone wo1-358-7451
The 1B 7451 Style can replace Firestone W01-358-7451, which means that they have same performance. And you can apply it to many industial machines. If you choose it, you will not only save the money, but also let your machine work effectively.
FAQ:
1. Did you test your product before shipping?
Yes, please rest assured that we have 100% test all the products before shipping.
2. How do you package the goods?
We package the goods in strong carton or customers requirements.
3. Why choose us?
4. How about your delivery time?
It normally takes 3-8 working days.
5. Can I use my own logo and design on products?
Sure, OEM is welcomed.
