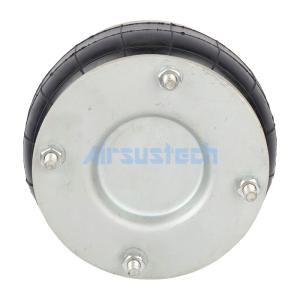

Norgren M/31061 G1/2 Flange Connection Suspension Air Spring for Vibration Isolation
Product Specifications and Technical
Air fitting: G1/2
Screw type: 4-M8
Minimum height: 55 mm
Maximum height: 110 mm
Full stroke: 55 mm
Cover plate diameter: 152.5 mm
Max. outer diameter: 175 mm
Installation space required: 190 mm
Center distance: 127 mm
Vibration isolation - dynamic characteristics values
| Pressure P [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [kN] | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.9 |
| Spring Rate [N/cm] | 1585 | 2005 | 2455 | 2860 | 3315 | 3745 | |
| Natural Frequency [Hz] | 3.52 | 3.4 | 3.4 | 3.3 | 3.3 | 3.3 |
Pneumatic application - static characteristic values
| Pressure p | [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol.[l] |
| Height H [mm] | 100 | 2.3 | 3.1 | 4.0 | 4.9 | 5.8 | 6.8 | 1.0 |
| 90 | 3.1 | 4.2 | 5.3 | 6.4 | 7.5 | 8.7 | 0.9 | |
| 80 | 3.8 | 5.1 | 6.4 | 7.8 | 9.15 | 10.5 | 0.7 | |
| 70 | 4.5 | 6.0 | 7.6 | 9.1 | 10.7 | 12.3 | 0.6 | |
| 60 | 5.3 | 7.1 | 8.8 | 10.6 | 12.4 | 14.2 | 0.4 |
Replaces These Air Springs (Air Bellows)
Replace Norgren M/31061
Replace Norgren M31061
Replace Norgren M 31061
Replace Firestone W01-R58-4052
Replace Firestone W01R584052
Replace Firestone W01 R58 4052
Replace Dunlop Pneuride 6"x1 (Steel)
Replace Dunlop Pneuride 6x1 (Steel)
Replace Dunlop Pneuride 6'x1 (Steel)
Replace Dunlop Springride SP1536
Replace Contitech FS 76-7 DS
Replace Contitech FS 767 DS
Replace Contitech FS 76 7 DS
Replace Parker 9109004
